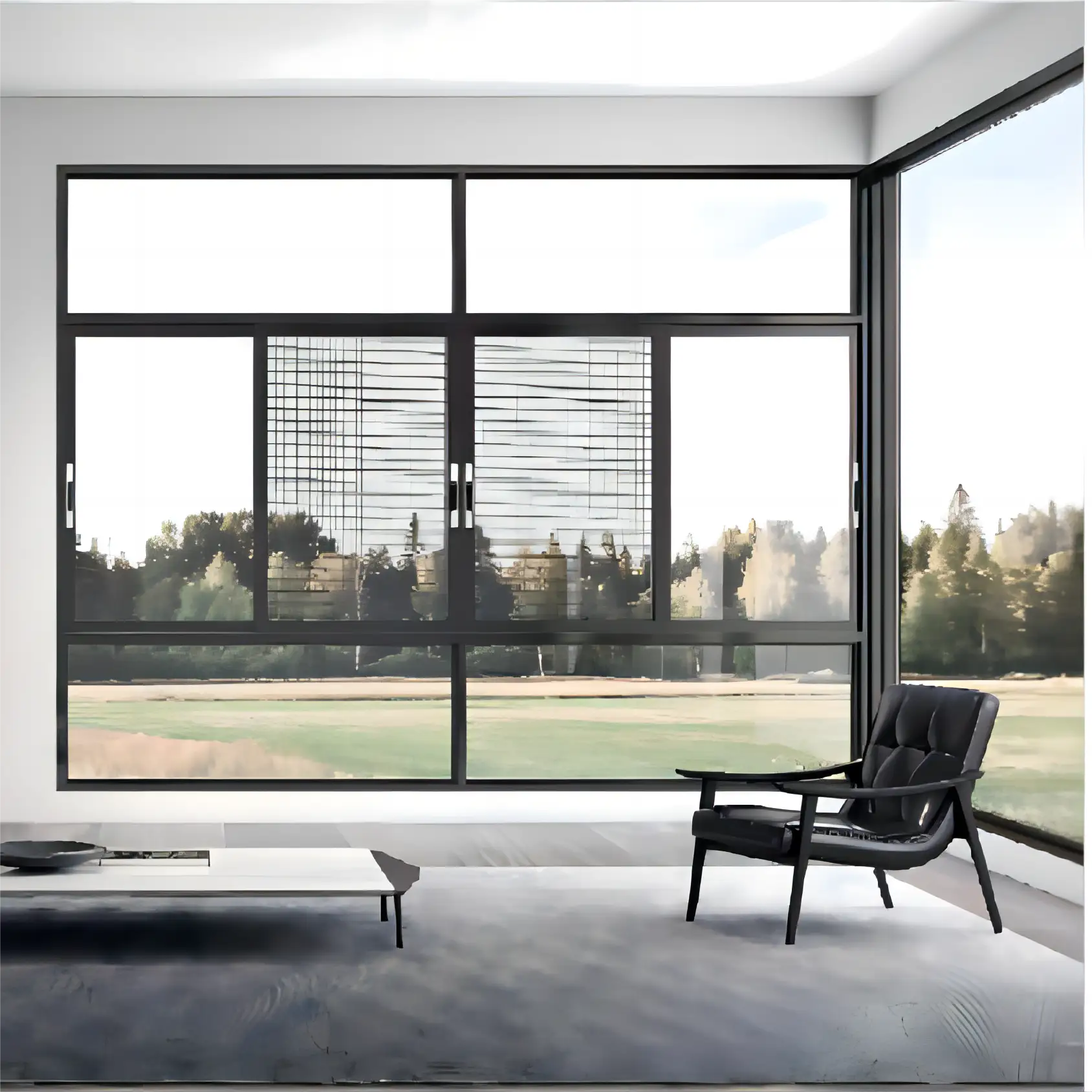

Broken-Bridge Sliding Window Klein T128A Series

Klein Tl28A series sliding window exhibits superior performance in terms of waterproofing, drainage, and sealing compared to traditional sliding windows and is widely used for both interior and exterior spaces, as well as for balconies.

Inquiry

Write a Review

Basic Parameters

Heat resistance performance	Soundproofing performance	Watertight performance	Hurricane performance	Airtight performance
Uw2.0W/m2 K	Rw up to 30dB	+500Pa	+2500Pa	Ievel 5

Main Profile wall thickness (mm)	Dimensions of Front-view (mm)		Exernal frame wall-mounting Size (mm）		Glass specification (mm)	Insulation Strip (mm)	Window panel specification
2.0mm	Top track: 42	Glass profile: 64	2-Track	85	5G+14A+5G	14.8	W: 400mm-800mm
	Side frame: 40	Screen frame: 64	3-Track	127			H: 400mm-1800mm
	Bottom track: 74		Glass panel	31			Weight limit: 120kg

There are three opening methods:

Inward casement

Tilt and turn

Floor-to-ceiling tilt and turn

Glass

Lock

Track

Adjusting wheel

Broken-Bridge Sliding Window Klein T128A Series 5

Broken-Bridge Sliding Window Klein T128A Series 6

Broken-Bridge Sliding Window Klein T128A Series 7

Broken-Bridge Sliding Window Klein T128A Series 8

Features

KLEIN T128A BROKEN BRIDGE SLIDING WINDOW

* The aluminum profile width of the panel: 64MM.

* Integrated 6-rail design, equipped with double-row bearing rollers, built-in stainless steel track, sliding smoothly and stably.

* The upper track is equipped with anti-jump and anti-swing roller.

* Sunken drainage function, more smooth drainage.

* Multi-cavity profile design, with the addition of silicified polypropylene wool strip and EPDM composite sealing strip, greatly improve the waterproof, sound insulation and airtight performance.

* Equipped with a straight-line automatic latch lock for convenient opening.

* Standard 5G+14A+5G insulating tempered double glazing white glass.

* Handrails can be configured, and ultra-wide sliding Windows can be used as track reinforcement, preventing the overall window frame from shaking.

Product Features

● The frame, stems and fans are all rectangular cavity designs, with glue-injected corner codes and glue-injected functional connectors, the connection is firm and the frame structure is stable;

● The cast aluminum corner code is used. The corner code has both the corner assembly function of the corner assembly and the corner assembly function of the top screw, and is suitable for different processing habits and processing equipment;

● A full range of outdoor EPDM strip sealing designs, and the glass buckles are all on the indoor side, eliminating installation hazards;

● The glass buckle is designed with a cavity structure, which is not easy to deform and has high strength. It blocks air backflow and improves the sealing performance and wind pressure resistance of doors and windows.

● Standard configuration 5G+27A+5G Super large hollow, filled with erotic gas (xenon), which effectively reduces heat loss of door and window glass, blocks noise, and achieves excellent noise reduction, heat preservation, and sound insulation performance.

The 7-profile multi-cavity structure design can reduce heat loss caused by air convection, achieve good thermal insulation performance, and also improve sound transmission.

● The exterior and interior are coplanar, making the inside and outside of the window sash flush, perfectly hiding the gap between the frame and sash, and making the visual effect more simple and beautiful.

● The three-layer sealing structure effectively separates the water vapor cavity, successfully achieves equal pressure balance of air and water, significantly improves the water tightness and air tightness of doors and windows, and enhances the sound insulation effect.

● The anti-collision and corner protection technology of the window sash solves the problem of sharp corner collisions. The design is safer and prevents accidental scratches. It is a more humane modern home design.

12-layer drainage function design, combined with the external windshield drainage cover, avoids water backflow and makes drainage smoother.

● In the scenario where floor-to-ceiling inward-opening windows are designed, a safety glass guardrail can be designed indoors.

● kinds of reinforced center stile and additional reinforced center stile designs to meet different height and strength requirements;
